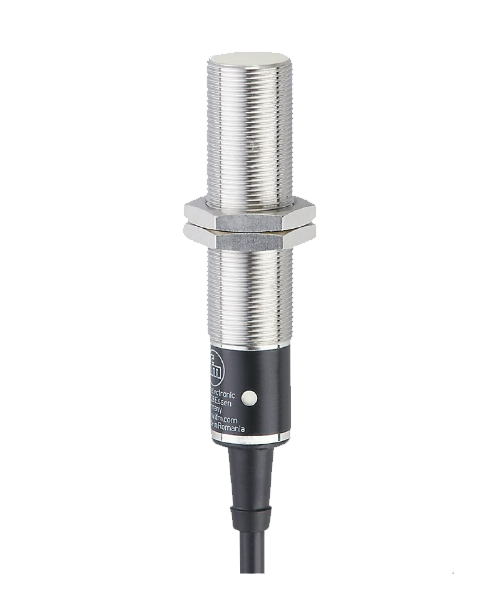

Product Description
| Product characteristics | ||
| Output function | normally open | |
| Sensing range [mm] | 5 | |
| Housing | threaded type | |
| Dimensions [mm] | M18 x 1 / L = 80 | |
| Electrical data | ||
| Operating voltage [V] | 20...250 AC/DC | |
| Protection class | II | |
| Reverse polarity protection | no | |
| Outputs | ||
| Output function | normally open | |
| Max. voltage drop switching output DC [V] | 6 | |
| Max. voltage drop switching output AC [V] | 6.5 | |
| Minimum load current [mA] | 5 | |
| Max. leakage current [mA] | 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) | |
| Permanent current rating of switching output AC [mA] | 250; (350 (...50 掳C)) | |
| Permanent current rating of switching output DC [mA] | 100 | |
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) | |
| Switching frequency AC [Hz] | 25 | |
| Switching frequency DC [Hz] | 50 | |
| Short-circuit proof | no | |
| Overload protection | no | |
| Detection zone | ||
| Sensing range [mm] | 5 | |
| Real sensing range Sr [mm] | 5 卤 10 % | |
| Operating distance [mm] | 0...4.05 | |
| Accuracy / deviations | ||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 | |
| Hysteresis [% of Sr] | 1...15 | |
| Switch point drift [% of Sr] | -10...10 | |
| Operating conditions | ||
| Ambient temperature [掳C] | -25...80 | |
| Protection | IP 67 | |
| Tests / approvals | ||
| EMC | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 3 V/m | |
| EN 61000-4-4 Burst | 2 kV | |
| EN 61000-4-6 HF conducted | 3 V | |
| EN 55011 | class B | |
| MTTF [years] | 609 | |
| UL approval | Ta | 0...40 |
| Enclosure type | Type 1 | |
| power supply | Hazardous voltage | |
| File number UL | E174191 | |
| Mechanical data | ||
| Weight [g] | 155.9 | |
| Housing | threaded type | |
| Mounting | flush mountable | |
| Dimensions [mm] | M18 x 1 / L = 80 | |
| Thread designation | M18 x 1 | |
| Materials | housing: brass white bronze coated; sensing face: PBT natural; LED window: PBT natural | |
| Tightening torque [Nm] | 23 | |
| Displays / operating elements | ||
| Display | switching status | 1 x LED, yellow |
| Electrical connection | ||
| Required protection | miniature fuse to IEC60127-2 sheet 1; 鈮?2 A; fast acting | |
| Accessories | ||
| Items supplied | lock nuts: 2 | |
| Remarks | ||
| Remarks | Recommendation: Check the safe functioning of the unit after a short circuit. | |
| Pack quantity | 1 pcs. | |
| Electrical connection | ||
| Connection | Cable: 2 m, PVC; 2 x 0.5 mm | |
