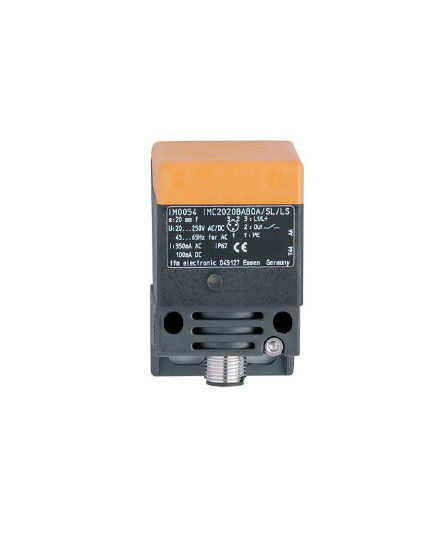

Product Description
| Product characteristics | ||
| Output function | normally open | |
| Sensing range [mm] | 35 | |
| Housing | rectangular | |
| Dimensions [mm] | 40 x 40 x 66 | |
| Application | ||
| Special feature | Gold-plated contacts; Increased sensing range | |
| Electrical data | ||
| Operating voltage [V] | 20...250 AC/DC | |
| Protection class | I | |
| Reverse polarity protection | no | |
| Outputs | ||
| Output function | normally open | |
| Max. voltage drop switching output DC [V] | 6 | |
| Max. voltage drop switching output AC [V] | 6.5 | |
| Minimum load current [mA] | 1.9 | |
| Max. leakage current [mA] | 2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC) | |
| Permanent current rating of switching output AC [mA] | 250; (350 (...50 °C)) | |
| Permanent current rating of switching output DC [mA] | 100 | |
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) | |
| Switching frequency AC [Hz] | 20 | |
| Switching frequency DC [Hz] | 50 | |
| Short-circuit proof | no | |
| Overload protection | no | |
| Detection zone | ||
| Sensing range [mm] | 35 | |
| Operating distance [mm] | 0...28.3 | |
| Increased sensing range | yes | |
| Accuracy / deviations | ||
| Correction factor | steel: 1 / stainless steel: 0.8 / brass: 0.4 / aluminium: 0.4 / copper: 0.3 | |
| Hysteresis [% of Sr] | 3...15 | |
| Operating conditions | ||
| Ambient temperature [°C] | -25...70 | |
| Protection | IP 67 | |
| Tests / approvals | ||
| EMC | EN 60947-5-2 | |
| EN 55011 | class B | |
| MTTF [years] | 600 | |
| Mechanical data | ||
| Weight [g] | 160.5 | |
| Housing | rectangular | |
| Mounting | non-flush mountable | |
| Dimensions [mm] | 40 x 40 x 66 | |
| Materials | housing: PPE; sensing face: PPE orange; end cap: PPS; clamp: PPS black; screw: steel galvanised | |
| Displays / operating elements | ||
| Display | switching status | 1 x LED, yellow |
| Electrical connection | ||
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting | |
| Remarks | ||
| Remarks | Recommendation: Check the safe functioning of the unit after a short circuit. | |
| 5 positions of the active zone possible | ||
| Pack quantity | 1 pcs. | |
| Electrical connection - plug | ||
| Connector: 1 x M12; coding: C; Locking: brass, white bronze coated; Contacts: gold-plated | ||
| Electrical connection | ||
| Required protection | miniature fuse to IEC60127-2 sheet 1; 鈮?2 A; fast acting | |
| Accessories | ||
| Items supplied | lock nuts: 2 | |
| Remarks | ||
| Remarks | Recommendation: Check the safe functioning of the unit after a short circuit. | |
| Pack quantity | 1 pcs. | |
| Electrical connection | ||
| Connection | Cable: 2 m, PVC; 2 x 0.5 mm | |
